Setup Time Reduction for CNC Machining
Cut changeover and setup time by 40–70% with SMED-based setup reduction methods adapted to your CNC machines and part families.
The Fastest Path to More Spindle Time
Setup reduction is the process of minimizing machine changeover time — the downtime between the last good part of one job and the first good part of the next. Using SMED (Single-Minute Exchange of Die) principles, most CNC shops achieve meaningful setup time reduction in machining operations without major capital investment, typically cutting changeover durations by 40–70%.
Every minute your spindle sits idle during a changeover is a minute it is not cutting chips and generating revenue. In a high-mix environment running 8–15 setups per machine per day, even shaving 10 minutes off each changeover adds up to hours of recovered capacity every shift. Setup reduction for CNC operations targets this exact gap between machine capability and actual productive output.
The methodology originates from Shigeo Shingo's work at Toyota in the late 1960s, where he famously reduced a 1,000-ton press changeover from four hours to three minutes. The core insight — separating internal setup (tasks that require the machine to be stopped) from external setup (tasks that can happen while the machine runs) — applies directly to CNC machining, turning, and grinding operations.
According to the Lean Enterprise Institute, setup reduction consistently ranks among the highest-ROI lean manufacturing improvements because it increases capacity without adding equipment, labor, or floor space.
How SMED Works on Your Shop Floor
SMED is not a theoretical exercise. It is a structured, four-step process applied directly to the changeovers happening in your facility every day.
1. Separate Internal vs. External Activities
The first step is documenting every task that happens during a changeover, then classifying each one. Internal activities require the machine to be stopped — mounting fixtures, indicating parts, loading programs. External activities can happen while the previous job is still running — gathering tools, staging material, reviewing prints.
In most shops, 30–50% of changeover time consists of tasks that could be performed externally but are not, simply because no one has separated them.
2. Convert Internal to External
Once activities are classified, the goal is to move as much work as possible outside the changeover window. Pre-staging tooling at the machine, pre-loading programs to the control offline, and preparing fixture assemblies at a bench instead of on the table are common conversions.
Quick-change fixturing, offline tool presetters, and color-coded tool holders make this transition practical and repeatable.
3. Streamline Remaining Internal Steps

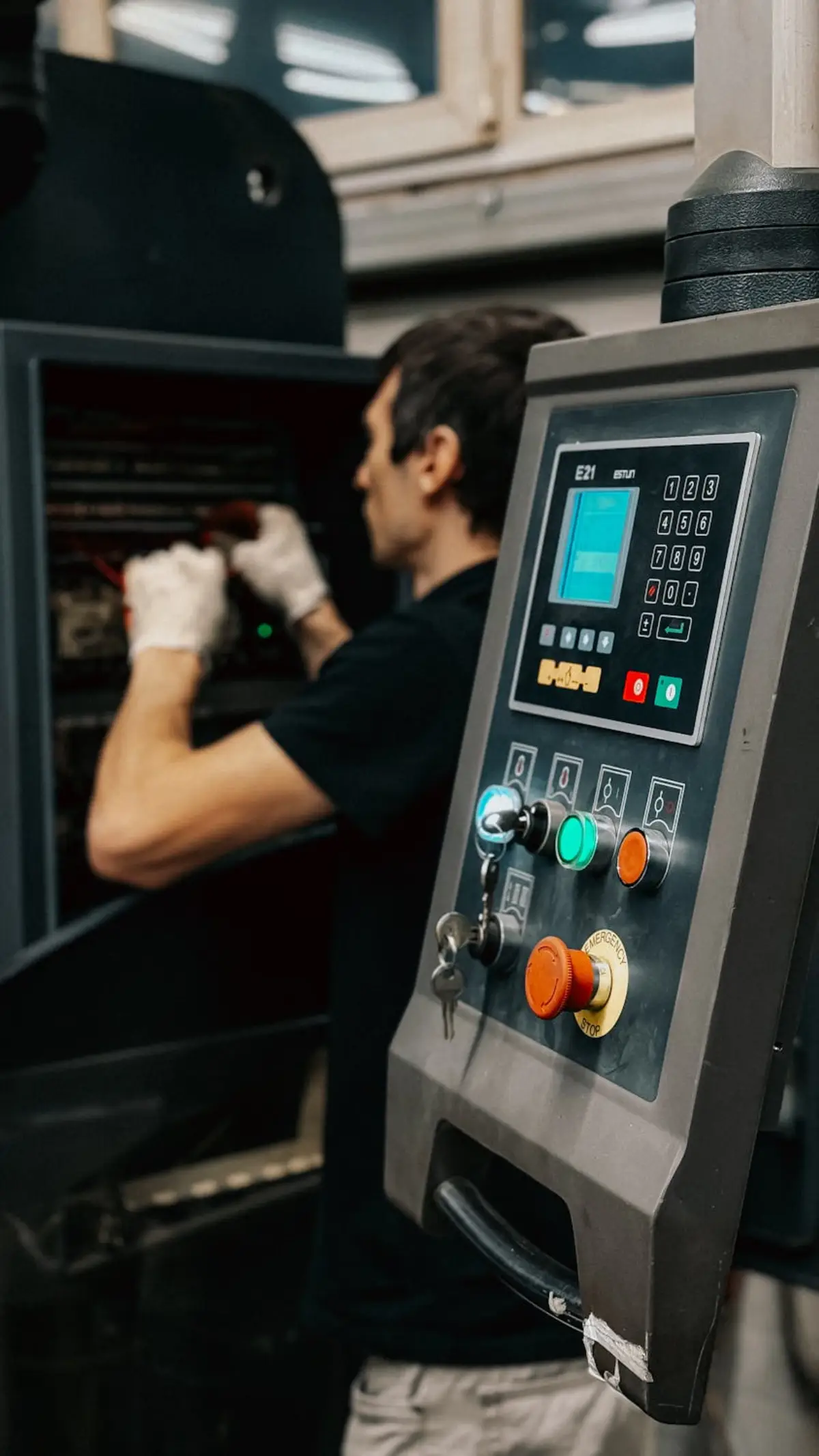

For tasks that genuinely must happen with the machine stopped, the focus shifts to speed and simplicity. Quick-locate pins replace precision alignment. One-turn fasteners replace multi-bolt clamps. Standardized fixture heights eliminate Z-axis re-zeroing across setups.
Each refinement shaves seconds or minutes from the critical path — and those increments compound across every changeover, every shift.
4. Standardize and Document
The improved changeover sequence gets captured in standard work documents — clear, visual, step-by-step instructions that any trained operator can follow. This prevents regression and makes the new method the default, not the exception.
Documentation includes tool lists, fixture locations, program names, offset values, and inspection requirements for each part family.
What a Set Up Reduction Engagement Looks Like
Every engagement follows a proven sequence designed to produce measurable results within weeks, not months.

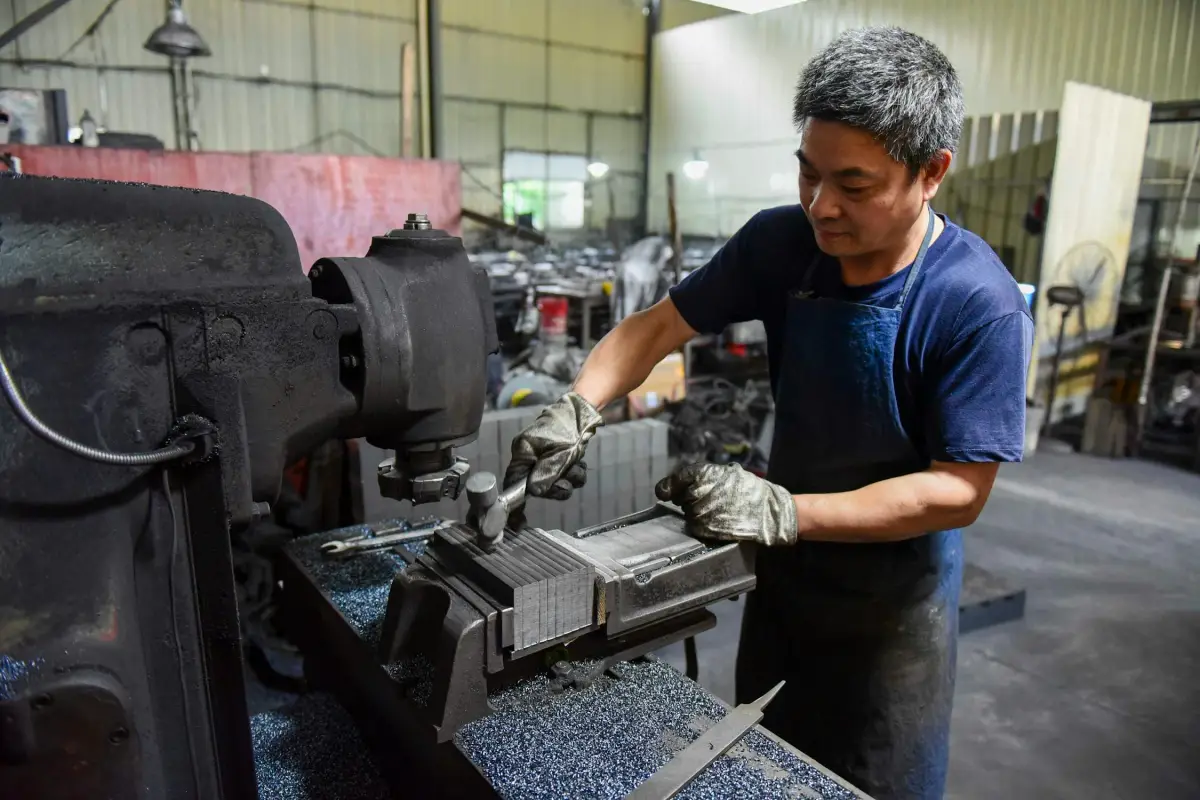

- Video current setups — With operator permission, we record actual changeovers to capture every movement, decision point, and delay. Video eliminates guesswork and reveals patterns that time studies alone miss.
- Time study each element — Every individual task within the changeover is timed and cataloged. We measure tool gathering, fixture mounting, program loading, first-article inspection, and everything in between.
- Classify internal vs. external — Each task is categorized using the SMED framework. This step alone typically reveals that 30–50% of changeover time is spent on tasks that do not require the machine to be stopped.
- Design the improved sequence — We build a new changeover workflow that moves external tasks out of the critical path, streamlines internal tasks, and establishes a repeatable order of operations.
- Build standard work documents — Visual, operator-friendly instructions for the new method. These include tool lists, fixture locations, program references, and quality checkpoints.
- Train operators on the new method — Hands-on training at the machine, not in a classroom. Operators practice the new sequence on real setups with coaching support.
- Validate with measurable time trials — We run timed changeovers using the new method and compare against the baseline. Results are documented and shared with your team to build confidence in the improvement.
Where the Time Goes — and How to Get It Back
Setup time is not a single number. It is a collection of individual tasks, each with its own reduction potential. Here is what we typically find across CNC job shops and OEM machining operations.
| Setup Element | Typical Time Savings |
|---|---|
| Tool gathering and searching | 80–100% (moved to external setup) |
| Fixture alignment and indication | 40–60% (quick-locate pins and standardized datums) |
| Program loading and verification | 90%+ (pre-loaded offline via DNC or USB) |
| First article inspection | 20–30% (gauge optimization and go/no-go fixtures) |
| Material staging and handling | 70–90% (kanban systems and pre-staging protocols) |
Ranges based on observed results across multiple CNC machining environments. Actual results depend on current setup practices, part complexity, and machine type.
Tracking Setup Reduction Progress Over Time
Setup reduction in CNC operations is not a one-time event — it is an ongoing discipline that requires measurement to sustain momentum. The shops that achieve lasting setup time reduction in machining track specific metrics weekly and use the data to drive continuous improvement cycles.
Baseline your current state first. Before implementing any changes, record the average changeover time for each machine over a two-week period. Break each changeover into its component tasks and time them individually. This baseline becomes the benchmark against which all future improvements are measured. Without it, you are guessing at progress rather than proving it.
Track changeover time by machine and by operator. Consistent setup reduction across operators confirms that your standard work documents are effective. If one operator consistently achieves 12-minute changeovers while another takes 25 minutes on the same machine, the gap points to a training or documentation issue — not a process issue. Closing operator-to-operator variation is one of the highest-leverage improvements in setup reduction CNC programs.
Measure recovered capacity in spindle hours. The ultimate measure of setup time reduction in machining is how many additional productive hours each machine gains per week. Multiply the average time saved per changeover by the number of weekly changeovers on that machine. A shop that reduces average setup time by 18 minutes across 60 weekly changeovers recovers 18 hours of spindle time — nearly equivalent to adding a full shift of production capacity without any overtime or additional headcount.
Monitor regression. Setup times tend to creep back up over 3-6 months as operators develop shortcuts, substitute tools, or skip preparation steps. A weekly setup time audit — recording one changeover per machine — catches regression early before the gains erode. This is why SMED-based setup reduction requires ongoing commitment from supervisors and shop management, not just an initial project push.
For a step-by-step walkthrough of SMED implementation on specific CNC machine types, see our detailed guide to reducing CNC setup time. Setup reduction pairs naturally with process optimization for throughput gains and manufacturing training to ensure your operators sustain the improvements. If fixturing is a bottleneck, our tooling solutions team can design quick-change workholding that accelerates changeovers further.
Set Up Reduction Questions
A 40–70% set up reduction is a realistic target for most CNC shops that have not previously applied SMED methods. Shops with especially long or disorganized set up times often see reductions at the higher end. The biggest gains typically come from moving external tasks — tool gathering, material staging, program preparation — out of the changeover window entirely.
Rarely. The majority of setup reduction improvements are method-based, not capital-based. Re-sequencing tasks, pre-staging tools, and standardizing procedures cost nothing but deliver significant time savings. In some cases, modest investments in quick-change fixturing, offline tool presetters, or standardized toolholders can accelerate results — but these are incremental purchases, not major capital expenditures.
High-mix environments are where setup reduction delivers the greatest return, because changeovers happen more frequently. We start with part family analysis — grouping parts by similar fixture requirements, tooling, and machine capabilities. This allows us to design flexible fixturing strategies and standardized setup sequences that cover families of parts rather than requiring unique procedures for every part number. The result is fewer unique setups and faster transitions between jobs within the same family.
Yes — because they help develop them. Operator buy-in is the single biggest factor in whether improvements stick. That is why we involve your machinists and setup technicians from the very first observation. They know their machines better than anyone, and their input shapes the improved process. When operators participate in building the new method, they own it. We reinforce this with hands-on training at the machine and clear, visual standard work documents that serve as a reference — not a mandate imposed from outside.
